| GL Model Capacity in LPD | 110 | 165 | 200 | 220 | 310 | 500 |
| NO Of tubes (1800/58MM) |
10 | 15 | 20 | 21 | 30 | 32 (2100/58MM) |

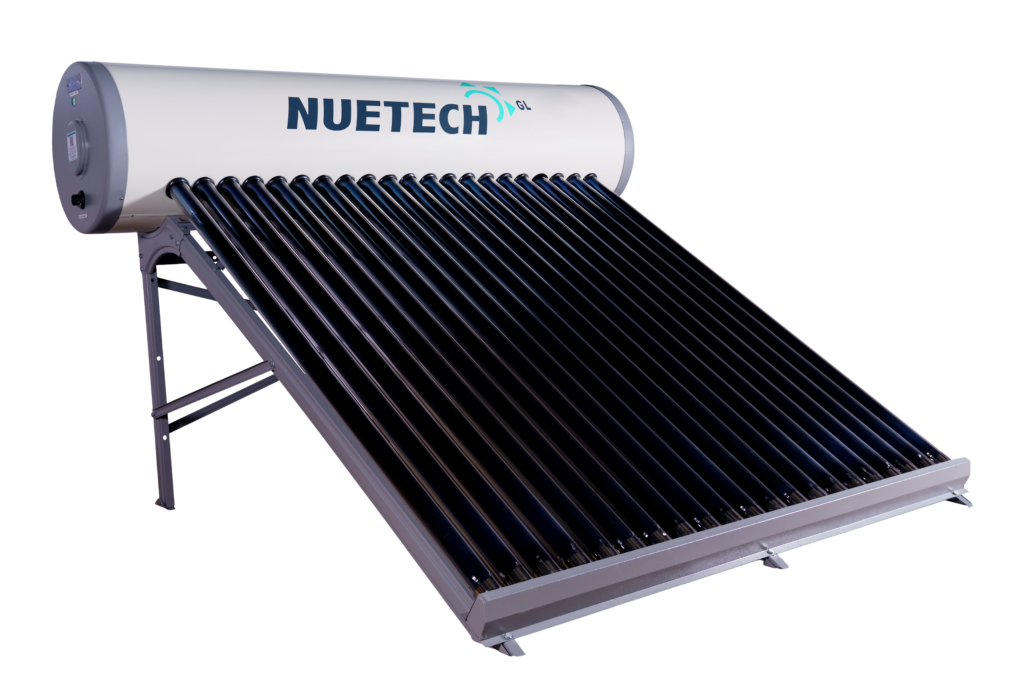

Key Features
With the Digital Controller System you can schedule your bathing time and adjust hot water temperatures. Normal schedule time (6am to 9 am or any flexible time in 24 hours) and you can set the temperature also as per your requirements to get hot water .Our Factory standard setting in DTC is 55 degrees
High quality Germen frit, Blue Glass enamel coating tanks. for longer durability withstand up to 2000 PPM of TDS.
Evacuated 3 T gold tubes keep heat absorption capacity with heigh performance.
Heigh density PUF insulated tanks.
Pure Polyester coating on Galvanised steel for supporting structure.
Cleaning holes provision in tanks for easy maintenance.
Electrical heating provision backup for versatility.
Type of Collector : ETC
System Capacity (precisely) : 120,170,220,320 & 500 LPD
Inner tank Materials : 1.6 mm,low carbon TATA Steel
Inner tank Protection coating : Food grade Enamel Glass lined with 200 TO 250 Micron thickness.
Puff Density : 40 Kg/Mt³
ETC Tubes : Ø 58 X 2100 mm, Boro silicate Glass tubes with 0.92 Absorbity
Puff Insulation : Polyurathene Foam, CFC FREE.
Special Feature : Digital controller with 24×7 Hot water.
Type of Collector: ETC
System Capacity (precisely): 120, 170, 220, 320 & 500 LPD
Inner tank Materials: 1.6 mm, low carbon TATA Steel
Inner tank Protection coating: Food grade Enamel Glass lined with 200 TO 250 Micron thickness.
Puff Density: 40 Kg/Mt³
ETC Tubes: Ø 58 X 2100 mm, Boro silicate Glass tubes with 0.92 Absorbity
Puff Insulation: Polyurathene Foam, CFC FREE.
Special Feature: Digital controller with 24×7 Hot water.
